| Quantidade mínima: | 1 peça |
| embalagem padrão: | placa 4pcs/plastic, |
| Período de entrega: | Dentro de 1-3 dias de trabalho |
| método de pagamento: | L/C, T/T, Western Union, cartão de crédito |
| Capacidade de abastecimento: | 10.000 PCs por mês |
(QSFP28-100G-ER4)

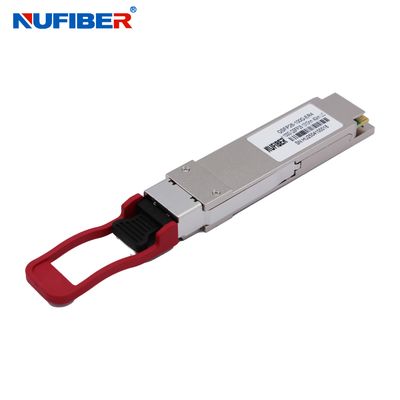

100G QSFP28 ER4 40km Optical Transceiver Module compatible with Cisco Huawei HP Juniper
Hot Pluggable, Duplex LC Connector, Single mode
The QSFP28-100G-ER4 is a transceiver module designed for 40km with FEC (30km without FEC) optical communication applications. The design is compliant to 100GbASE-ER4 of the IEEE 802.3-2012 Clause 88 standard IEEE 802.3bm CAUI-4 chip to module electrical standard ITU-T G.959.1-2012-02 standard . The module converts 4 inputs channels (ch) of 25.78 Gbps to 27.95Gbps electrical data to 4 lanes optical signals, and multiplexes them into a single channel for 100Gb/s optical transmission. Reversely, on the receiver side, the module optically de-multiplexes a 100Gb/s input into 4 lanes signals, and converts them to 4 lanes output electrical data.
The central wavelengths of the 4 lanes are 1296 nm, 1300 nm, 1305 nm and 1309 nm . It contains a duplex LC connector for the optical interface and a 38-pin connector for the electrical interface. To minimize the optical dispersion in the long-haul system, single-mode fiber (SMF) has to be applied in this module.
Features
Applications
Optical Parameters
| Parameter | Symbol | Min | Typ | Max | Unit | Note | |
| Data Rate per Channel | - | 25.78125 | Gbps | ||||
| Power Consumption | - | 2.5 | 3.5 | W | |||
| Supply Current | Icc | 0.75 | 1.0 | A | |||
| Control I/O Voltage-High | VIH | 2.0 | Vcc | V | |||
| Control I/O Voltage-Low | VIL | 0 | 0.7 | V | |||
| Inter-Channel Skew | TSK | 150 | Ps | ||||
| RESETL Duration | 10 | Us | |||||
| RESETL De-assert time | 100 | ms | |||||
| Power On Time | 100 | ms | |||||
| Transmitter | |||||||
| Single Ended Output Voltage Tolerance | 0.3 | 4 | V | 1 | |||
| Common mode Voltage Tolerance | 15 | mV | |||||
| Transmit Input Diff Voltage | VI | 120 | 1200 | mV | |||
| Transmit Input Diff Impedance | ZIN | 80 | 100 | 120 | |||
| Data Dependent Input Jitter | DDJ | 0.1 | UI | ||||
| Data Input Total Jitter | TJ | 0.28 | UI | ||||
| Receiver | |||||||
| Single Ended Output Voltage Tolerance | 0.3 | 4 | V | ||||
| Rx Output Diff Voltage | Vo | 600 | 800 | mV | |||
| Rx Output Rise and Fall Voltage | Tr/Tf | 35 | ps | 1 | |||
| Total Jitter | TJ | 0.7 | UI | ||||
| Deterministic Jitter | DJ | 0.42 | UI | ||||
Ordering information
| 100G QSFP28 | ||||||
| QSFP28-100G-SR4 | 103.1 Gbp | 850nm | MMF | MTP/MPO | 100m | VCSEL 850nm |
| QSFP28-100G-LR4 | 103.1 Gbp | 1310nm | SMF | LC duplex | 10km | DML 1310nm |
| QSFP28-100G-ER4 | 103.1Gbps | 1310nm | SMF | LC Duplex | 25km-40km | 4x EML |
| QSFP28-100G-PSM4 | 103.1 Gbp | 1310nm | SMF | MTP/MPO | 500m | 4x DFB |
| QSFP28-100G-LR-S | 103.1 Gbp | 1310nm | SMF | MTP/MPO | 2km | 4x DFB |
| QSFP28-100G-CWDM4-S | 103.1 Gbp | CWDM | SMF | LC duplex | 2km | DML CWDM |
| 1271~1331nm | ||||||
| QSFP28-100G-CWDM4-L | 103.1 Gbp | CWDM | SMF | LC duplex | 10km | DML CWDM |
| 1271~1331nm | ||||||
Products Show
Applications:
Packaging & Shipping
|
|
